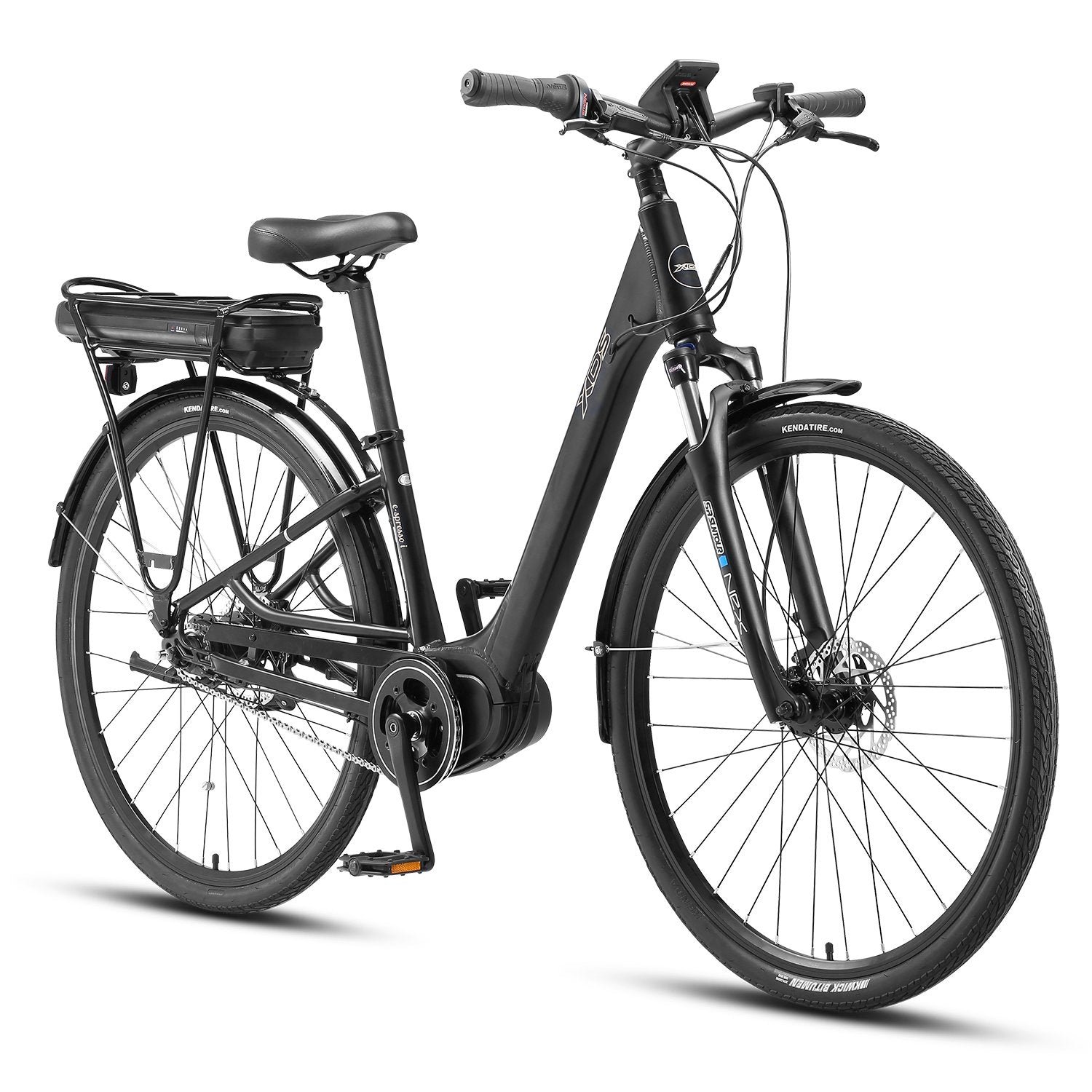

Discover the luxury of commuting with the XDS E-Spresso i8. Ride with Pedal Assistance for up to 75km with a Bafang Mid-Drive electric motor and a 36V Li-Ion battery with Panasonic cells. The Shimano Nexus 8-Speed internal hub gear looks sleek and is easily maintained. Have confidence in Suntour Nex Suspension fork, strong Alloy frame, and Tektro Hydraulic Disc Brakes.
Summary
Luxuriate through your commute on the effortless XDS E-Spresso i8. Specially designed with a Shimano Nexus hub gear, the i8 aims to be the most uncomplicated E-Bike available, with smooth gear shifting and minimal maintenance. Pedal Assist System (PAS) enabled electric motor amplifies your pedalling power making cycling effortless. Additional features like suspension forks and low-step-through frame offer riders unparalleled comfort throughout their commute.
Features
The Mid-Drive Advantage
Mid-Drive Systems are excellent for out-putting big amounts of torque, applicable for everyday commuting, climbing hills and powering through unfavourable terrain. Instead of individually powering the front or rear wheel through a single-speed conventional hub motor, the highly acclaimed Bafang MAX-01 allows you to take advantage of the bike’s drivetrain, and sends power through the gearing to efficiently amplify your power seamlessly.
Mid-Drive Advantages:
• More predictable control and speed
• Equal Weight Distribution (Fitted in the middle)
• Better power efficiency
Lithium-Ion Battery with Panasonic Cells
A great electric bike needs a great battery to work. The E-Spresso i8 comes with a big 36v 2200mAh Panasonic cell to keep you going and going. Safety tested to strict international standards and comes with intelligent protection board for longevity and durability.
Be in Control
With a large backlit Bafang LCD Display and built-in controller, you’ll be able to see your speed, trip stats (max speed, average speed, trip total and odometer), current power assist & battery charge. Cycle through 5 levels of power assist, with higher numbers providing more motor assistance during pedalling.
Superior Stopping Power
Experience the unparalleled stopping power of hydraulic disc brakes, capable of bringing you safely to a halt in any conditions. Hydraulic disc brakes are more reliable than their mechanical counterparts and afford riders greater control with less effort required.
Shimano Nexus Internal Hub
Enjoy a consistently smooth ride with the 8 Speed Shimano Nexus Internal Hub gear. Reduced maintenance is a trademark of Shimano Nexus hub gearing, with gears protected from external debris. The result is a greatly reduced need for maintenance and cleaning of the drivetrain.
Suspension Forks
Stay comfortable even through the bumps and jostles of uneven roads with Suntour Nex Suspension Forks. The Lockout feature allows you to disable the suspension with the twist of a dial when shock absorption is not a priority.
Accessible and Manoeuvrable
The E-Spresso i8″™s Low-Step-Through Lightweight alloy frame is simple to both control on the road, and mount/dismount.
Practical and Convenient
A range of additional features make the E-Spresso i8 ideal for riding in any situation including front and rear PVC mudguards and an alloy rear rack, perfect for attaching bags on long rides.
SPECIFICATIONS
| FRAME SIZES | 15″, 17″ |
| FRAME | XDS 700C Alloy Unisex |
| FORK | SR Suntour SF16-NEX Alloy Suspension Forks, 700C 28.6 x 25.4 x 30 x 249mm Threadless W/Lock Out and Preload Adjuster, T:63mm |
| HANDLEBAR | XDS Alloy 620mm 6° 31.8 |
| GRIPS | Rubber 130cm |
| STEM | XDS Alloy Threadless 28.6mm E:80mm H:41mm 7° 31.8mm |
| SEATPOST | XDS Alloy Micro Adjust 31.6 x 350mm |
| SEAT CLAMP | Alloy Quick Release |
| SADDLE | YBT Black |
| PEDALS | FP 9/16″, Plastic |
| GEAR SHIFTERS | Shimano Nexus SL-8S31 8 Speed Revoshifters |
| REAR DERAILLEUR | Shimano Nexus SG-C6001-8D Internal Geared Hub |
| FRONT BRAKES | Tektro Hydraulic Disc Brake F/R:TR160-8 (160mm) |
| REAR BRAKES | Tektro Hydraulic Disc Brake F/R:TR160-8 (160mm) |
| BRAKE LEVERS | Tektro Alloy Brake Levers |
| FREEWHEEL | Shimano Cassette 11-34T 8-SPD Index |
| CHAINWHEEL & CRANKS | Bafang Alloy Black 3/32″ x 38T, 170mm Black Alloy Cranks |
| CHAIN | KMC 1/2″ x 3/32″ x 112L |
| CHAINGUARD | Integrated |
| BOTTOM BRACKET | Integrated |
| HEADSET | Alloy 28.6 x 44-55 x 39.8mm 15.4mm H:21.8mm |
| FRONT HUB | Alloy Black, 14G x 32H, M9 x 100 x 108mm,Quick Release |
| REAR HUB | Alloy Black, 14G x 32H, M10 x 135 x 145mm |
| SPOKES | Stainless Steel, 14G |
| TYRES | KENDA 700C x 38C A/V |
| TUBE | 700C x 38C A/V |
| RIM | XDS Alloy 700C x 32H A/V |
| MUDGUARDS | Alloy, Silver |
| BELL | Plastic W/Alloy Cap |
| KICKSTAND | Steel 40mm L:300mm |
| ELECTRICAL COMPONENTS | |
| MOTOR | Bafang MAX-01, 36V/250W, Limit 25km/h, CL:49mm, W/Controller, W/Battery Communication, AU |
| BATTERY | Phylion, CB5A0181 36V/11Ah, 2200mAh Cell, W/Intelligent Protection Board, W/Communication |
| DISPLAY | Bafang LCD Display, DC 36V, 0-5 Modes, UART Communication, W/Walk Boost, W/ Light Switch |
| CHARGER | Phylion GS CE 100-240V 1.6A (MAX) 50/60HZ Output:42V 2A AU |
| SENSOR | Bafang Sensor, 1 Pulse, 5V, 500mm |
| MOTOR CABLE | Bafang 1000mm |
